DESCRIÇÃO

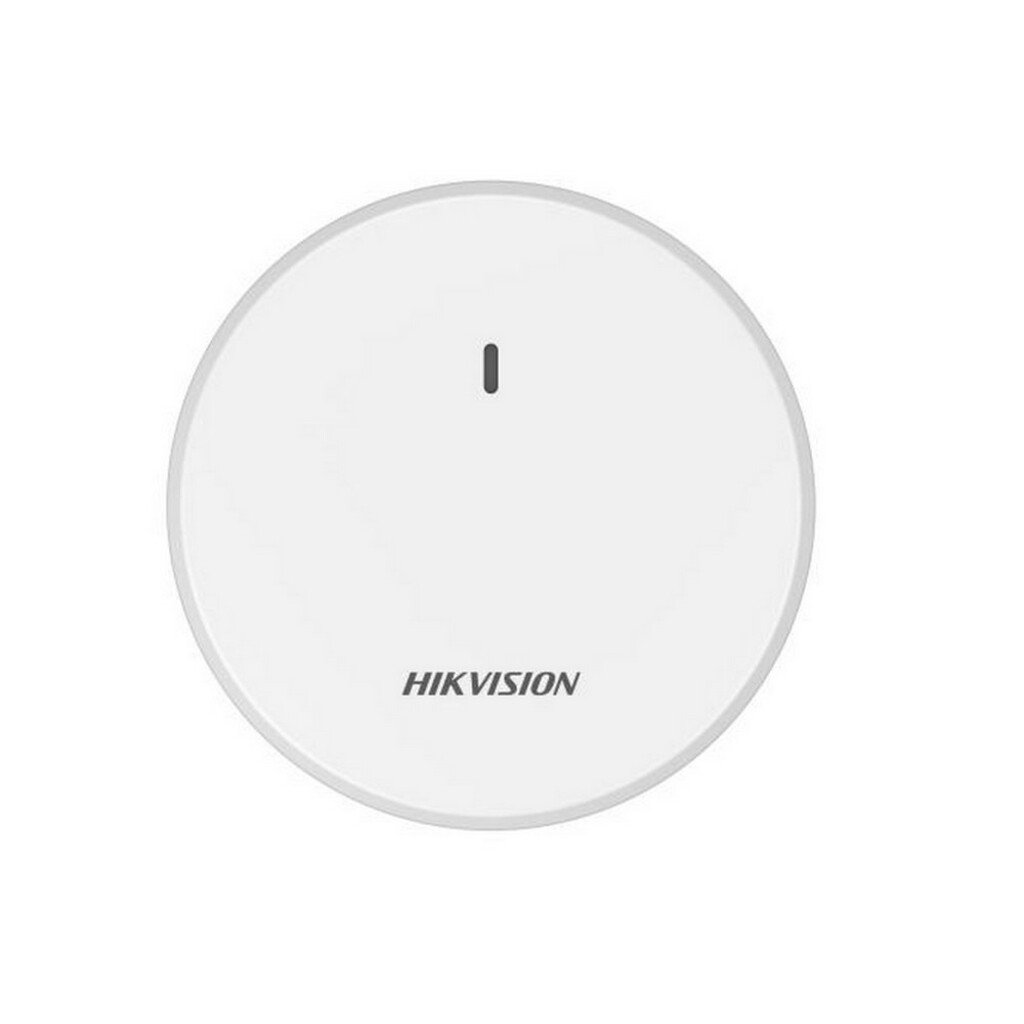

- Marca: Hikvision
- Modelo: DS-3WAP622E-SI
- 1 x 2.5 Gigabit Port with PoE Input
- 802.11ax Wi-Fi 6 2975 Mbps
- 100+ Concurrent User Connections
- Auto RF Optimization
- Support Intelligent Fast Roaming
Geral
- Peso: 0.37 kg (0.82 lb)
- Modo de instalação: Desk-Mounted,Wall-Mounted,Ceiling Mounting
- Temperatura de funcionamento: 0 °C to 45 °C (32 °F to 113 °F)
- Umidade de funcionamento: 5% to 95% (no condensation)
- Temperatura de armazenamento: -40 °C to 70 °C (-40 °F to 158 °F)
- Umidade de armazenamento: 5% to 95% (no condensation)
- Dimensões do produto (L x A x P); 220 mm × 220 mm × 39 mm (8.66'' × 8.66'' × 1.54'')
- Listagem de pacotes: 3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
- Consumo de energia: Max. 13.5 W
Hardware Specifications
- Interface: 1 × 2.5 Gigabit RJ45 uplink port: Fonte de alimentação
- IEEE 802.3af/at POE,12 VDC 1.5 A
- Indicador de LED: Yellow/green/blue for different working states, flashing mode
- Botão Reset: Hardware Resetting Button
WLAN Parameters
- Maximum Number of Clients: 256
- Recommended Number of Clients: 100
- Maximum Number of SSIDs: 8
- Banda de frequência de trabalho: radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
- Wi-Fi Standards: Wi-Fi 6
- Wi-Fi Speed: 2.4 G: 575 Mbps,5 G: 2400 Mbps
- Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
- Largura do canal: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
- Number of Antennas: 2.4GHz:2;5GHz:2
- Antenna Type: Built-in omnidirectional antennas
- Ganho da antena: 2.4 GHz: 3 dBi,5 GHz: 4 dBi
- Alimentação de transmissão: 20 dBm
- Modulation Technology
- OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
Software Specifications
- WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding: Management & Maintenance
- Centralized AC management
- Version Upgrade: upgrade on Web
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Segurança: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
- Química: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
